Quick Ship Control Panels

Control panels shipped in 7 days

We will not be undersold!

Our goal is to offer you a seamless experience for your project. With our Quick Ship Program, we eliminate the long wait times for quotes and panel construction. You can get pricing instantly and have your panel(s) shipped in just 7 days.

Our panels ship fully tested with a base test program installed. However, if you need programming, look no further! We can develop it and download it into your panel during startup.

Not finding the exact configuration you need?  We build custom panels too! Click here to request a custom panel/system.

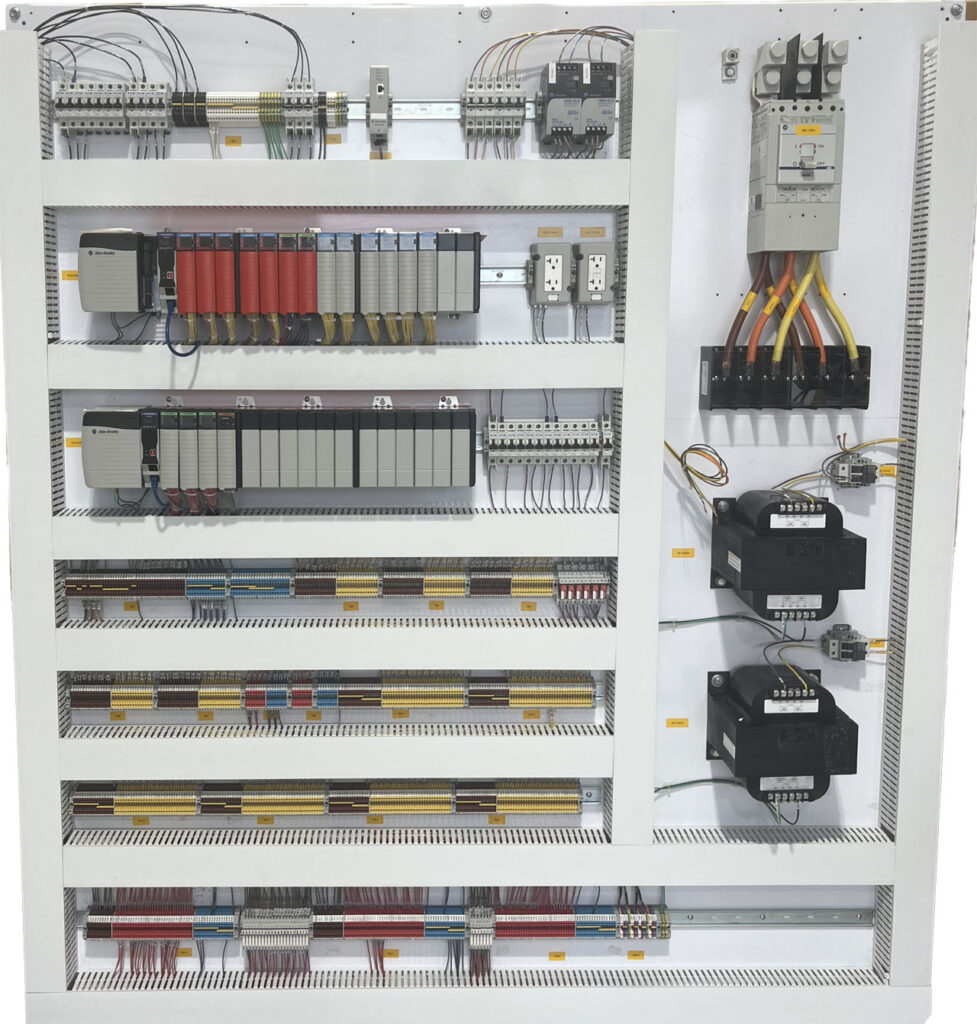

PLC Control Panels

The brains of your process automation system.
Starting at: $4,750

Create an account when ordering and save 10%, and be able to save your orders for future reordering

Standard Features:

  • Incoming power: 120 VAC, 1P, 60 Hz
  • SCCR: 10 kA
  • DC power supply (control)
  • Wall mount enclosure
  • UL 508A listed

Optional Features:

Enclosure types (wall mount)

  • NEMA 12, powder coated CRS
  • NEMA 4X, 304 SS

PAC/PLCs (brain for this system):

• AB, CompactLogix
  • 600 kB, Enet/IP, 16 devices
  • 1 MB, Enet/IP, 24 devices
  • 2 MB, Enet/IP, 40 devices
  • 3 MB, Enet/IP, 60 devices
  • 4 MB, Enet/IP, 90 devices
• AB, ControlLogix
  • 3 MB, Ethernet/IP, 100 devices
  • 5 MB, Enet/IP, 175 devices
  • 10 MB, Enet/IP, 250 devices
  • 20 MB, Enet/IP, 250 devices
  • 40 MB, Enet/IP, 300 devices

Additional NIC(s) (maximum of 3)

  • None
  • Single-port, Enet, 128 TCP connections
  • Dual-port, Enet, 128 TCP connections
  • Dual-port, Enet, 512 TCP connections

Ethernet switches (unmanaged)

  • None
  • 5-port
  • 8-port
  • 16-port
DC Uninterruptible Power Supply (UPS)

  • 4AH
  • 7AH

Surge protection / power filters

  • None
  • 10 A
Enclosure lights

  • None
  • LED, 24 VDC
View & Customize Product

HMI CONTROL PanelS

The operator’s window into the process automation system for monitoring and control.
Starting at: $3,400

Create an account when ordering and save 10%, and be able to save your orders for future reordering

Standard Features:

  • Incoming power: 120 VAC, 1P, 60 Hz
  • SCCR: 10 kA
  • DC power supply (control)
  • Wall mount enclosure
  • UL 508A listed

Optional Features:

Enclosure types (wall mount)

  • NEMA 12, powder coated CRS
  • NEMA 4X, 304 SS

HMIs (Operator Display)

  • AB, Panel View Plus 7 Performance
  • AD, Cmore

Surge protection / power filters

  • None
  • 10 A
View & Customize Product

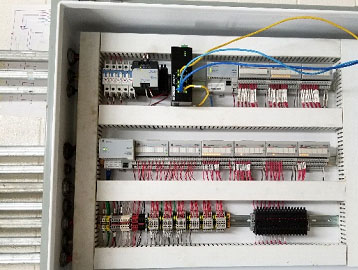

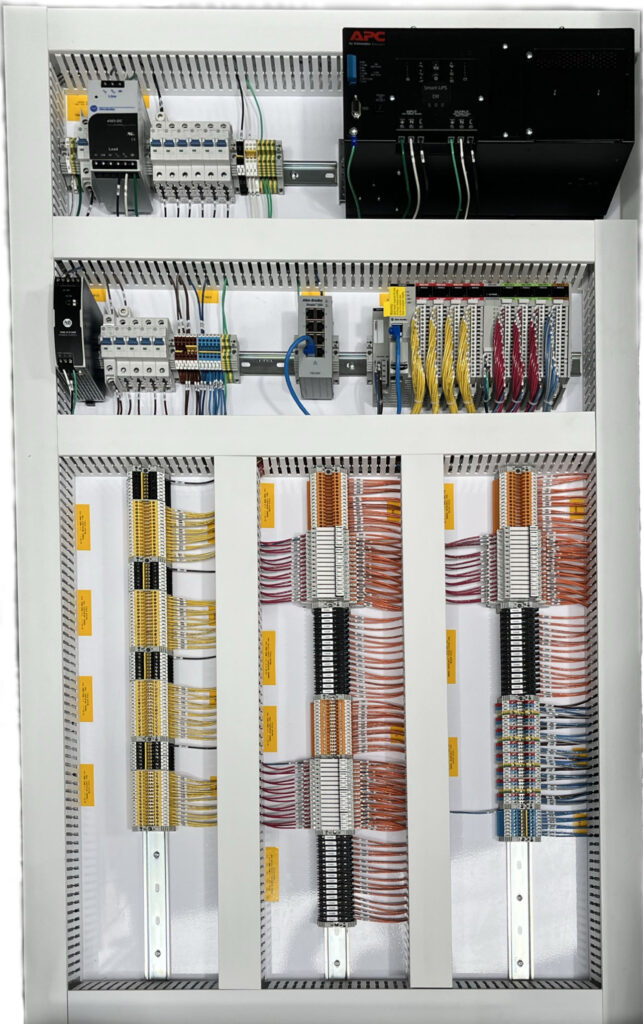

I/O Control PanelS

Connect sensors and actuators for monitoring/control to your process automation system via distributed I/O.
Starting at: $6,700

Create an account when ordering and save 10%, and be able to save your orders for future reordering

Standard Features:

  • Incoming power: 120 VAC, 1P, 60 Hz
  • SCCR: 10 kA
  • DC power supply (control)
  • DC power supply (field)
  • UL 508A listed

Optional Features:

Enclosure mountings

  • Wall mount
  • Free standing

I/O adapter/comms

  • AB, 5094 Flex I/O, Enet/IP

Surge protection / power filters

  • None
  • 10 A

Enclosure types

  • NEMA 12, powder coated CRS
  • NEMA 4X, 304 SS
Enclosure light

  • None
  • LED, 24 VDC
I/O type and counts

  • DI, 16pt (24 VDC)
  • DI, 16pt (120 VAC)
  • DO, 16pt (24 VDC)
  • DO, 16pt (120 VAC)
  • RO, 8pt
  • AI, 8ch, (4-20mA)
  • AI, 8ch (4-20mA)
  • AO, 8ch (4-20mA)
  • AO, 8ch (4-20mA)
View & Customize Product

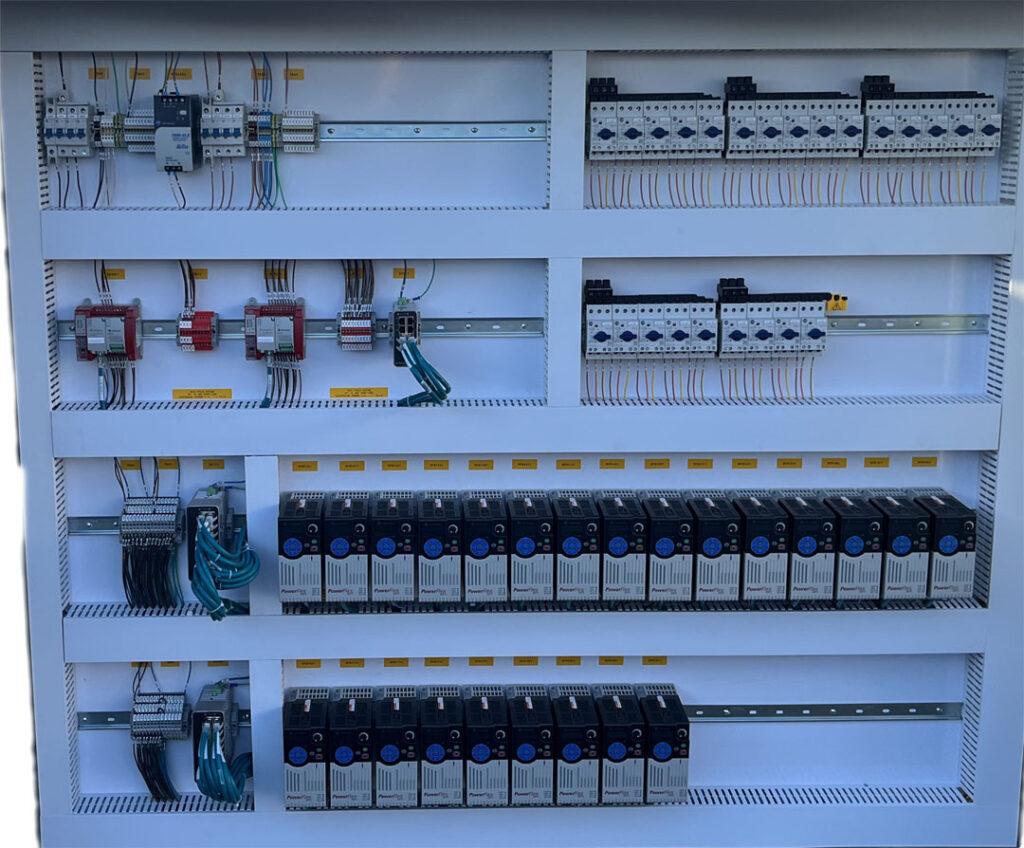

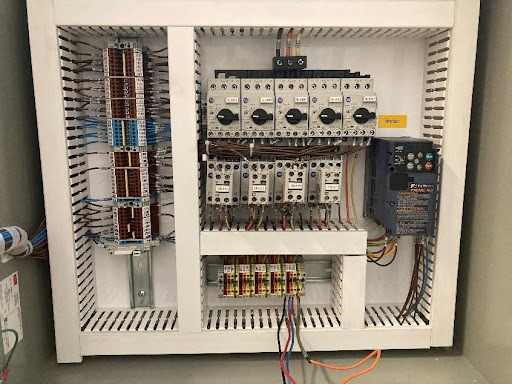

Motor Control PanelS

Connect and control motors within your process automation system via a motor control panel.
Starting at: $8,200

Create an account when ordering and save 10%, and be able to save your orders for future reordering

Standard Features:

  • Incoming power: 460 VAC, 3P, 60 Hz
  • SCCR: 65 kA
  • Main, fused flange disconnect
  • Power distribution
  • Branch circuit protection
  • Control power transformer
  • Max ambient temp: 80 deg F, covered
  • Cabinet cooling fan(s) w/ thermostat
  • UL 508A listed

Optional Features:

Enclosure types

  • NEMA 12, powder coated CRS
  • NEMA 4X, 304 SS

Enclosure mountings

  • Wall mount
  • Free standing
Enclosure Doors

  • 0-6 maximum

Electrical main sizes

  • 30 A
  • 60 A
  • 100 A
  • 200 A
  • 400 A
  • 600 A
  • 800 A
  • 1200 A
Motor Starter

  • AB, Powerflex 525 & 753, Enet/IP
AC Unit

  • None
  • 1000 BTU/H
  • 2000 BTU/H
  • 3000 BTU/H
  • 5000 BTU/H
  • 6000 BTU/H
  • 8000 BTU/H
  • 10,000 BTU/H
  • 13,000 BTU/H
VFD types

  • 1 HP HD
  • 2 HP HD
  • 3 HP HD
  • 5 HP HD
  • 7.5 HP HD
  • 10 HP HD
  • 15 HP HD
  • 20 HP HD
  • 25 HP HD
  • 30 HP HD
  • 40 HP HD
  • 50 HP HD
  • 60 HP HD

Ethernet switches (unmanaged)

  • None
  • 5-port
  • 8-port
  • 16-port

Surge protection / power filters

  • None
  • 10 A
Enclosure light

  • None
  • LED, 24 VDC
View & Customize Product
